Building a proper foundation for your garden shed is crucial for its longevity and stability. In Ireland’s variable climate, a well-constructed base protects your shed from moisture damage, prevents tilting, and ensures doors and windows function correctly. This guide will walk you through the different options for creating the perfect shed base, with step-by-step instructions for each method.

Assessing your needs before starting

Before breaking ground, consider:

• Shed size and weight
• Ground conditions on your property
• Budget constraints
• Long-term plans for the structure
• Local drainage patterns

Taking time to assess these factors will save you headaches later. For instance, a small tool shed requires less substantial foundations than a large garden room that might be used year-round.

Types of shed bases

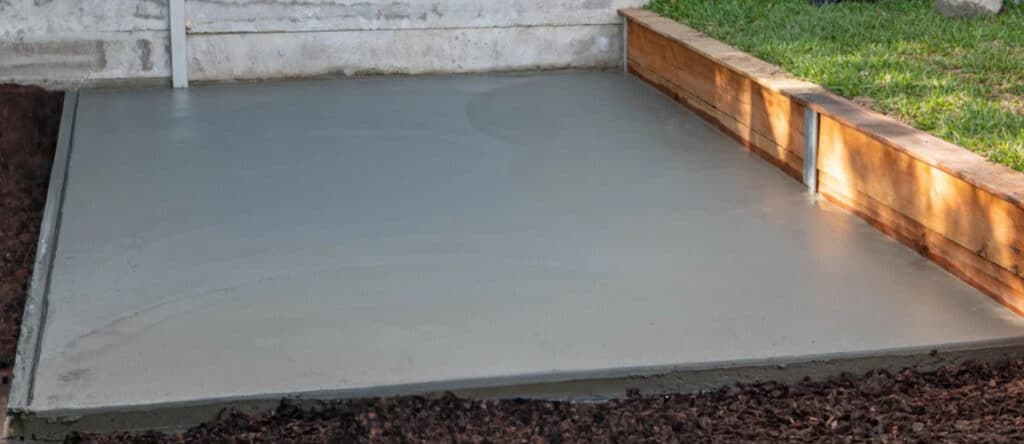

1. Concrete slab base

A concrete base offers maximum durability and is ideal for larger sheds or those housing heavy equipment. Think of it as creating a miniature foundation similar to what supports your house – solid, level, and built to last through decades of Irish weather.

Materials needed:

• MOT type 1 hardcore (crushed stone/gravel)
• Sharp sand or ballast
• Cement (for mixing concrete)
• Wooden formwork (50mm x 100mm planks)
• Damp-proof membrane
• Steel reinforcement mesh (for larger structures)
• Spirit level
• Pegs and string

Step-by-step guide:

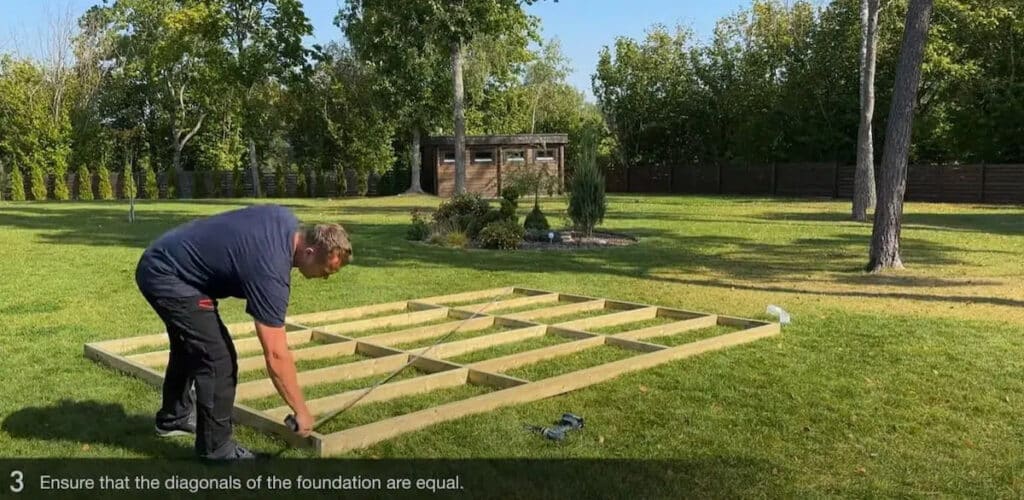

1. Mark your area: Use pegs and string to outline an area slightly larger than your shed dimensions, ensuring corners are square. A good tip is to use the 3-4-5 method to check for square corners: measure 3 units along one string, 4 units along the perpendicular string, and the diagonal between these points should be 5 units.
2. Excavate the ground: Dig to a depth of approximately 20cm (including 5cm for wooden boxing). Remove all vegetation, roots, and loose soil. In areas with clay soil common in parts of Ireland, you might need to dig deeper to ensure stability.
3. Add hardcore: Fill with 15cm of compacted gravel for drainage. Use a vibrating plate or hand tamper to ensure it’s firmly packed. This layer is crucial in Ireland’s wet climate as it allows water to drain away from your shed’s base.
4. Build a wooden frame: Construct a frame using 100mm x 50mm timber, positioning it 5cm above ground level to ensure good drainage. Secure with wooden stakes. The frame should be perfectly level, as any irregularities will be permanently set in concrete.
5. Add damp-proofing: Lay a damp-proof membrane across the entire area, extending up the sides of the frame. This barrier is essential in Ireland’s damp conditions to prevent moisture from rising through the concrete.
6. Add reinforcement: For larger sheds, place steel mesh reinforcement on small spacers to position it in the middle of the concrete. This prevents cracking and adds significant structural strength to garden sheds that will bear heavier loads.
7. Pour concrete: Mix concrete (1:5 cement to ballast ratio) or use pre-mixed concrete. Pour to a depth of 100-150mm, tamping to remove air bubbles. For larger areas, work in sections to ensure you can reach and level properly before the concrete begins to set.
8. Level and finish: Use a straight piece of timber to screed the surface level, then float or brush for your desired finish. A slightly roughened surface provides better grip for your shed.
9. Allow to cure: Cover with a plastic sheet elevated on supports for 3-7 days, protecting from rain and excessive heat. In Ireland’s climate, allowing proper curing time is essential – rushing this step can lead to a weakened base.

The concrete base costs approximately €150-€300 for materials depending on size, plus potential equipment rental, but provides excellent long-term value with minimal maintenance. While it’s the most expensive option upfront, many find it the most economical over the life of the shed.

2. Paving slab base

A more budget-friendly option suitable for smaller to medium-sized sheds, a paving slab base offers a good balance between cost, durability and ease of installation.

Materials needed:

• Paving slabs
• MOT type 1 hardcore
• Sharp sand
• Damp-proof membrane
• Spirit level
• Rubber mallet

Step-by-step guide:

1. Mark and excavate: Outline your area and dig to a depth of 15-18cm. Keep the excavated area square and level at the bottom.
2. Lay foundation materials: Place a damp-proof membrane, then add 15cm of compacted hardcore. The membrane prevents weeds and moisture from penetrating upward into your base.
3. Add sand layer: Spread a 3cm layer of sharp sand and level carefully. This provides a smooth bed for the paving slabs and helps with final leveling adjustments.
4. Position slabs: Place paving slabs with approximately 3mm gaps between them. Use a rubber mallet to tap them into position, checking they’re level across the entire area. Work from one corner, gradually moving outward to avoid disturbing already-positioned slabs.
5. Fill gaps: Brush sand into the gaps between slabs to stabilize them and prevent movement over time.

This method costs approximately €50-€150 for materials and is suitable for garden sheds and smaller structures. It’s particularly popular in Ireland because the materials are readily available, and the installation process is manageable for most DIY enthusiasts.

3. Wooden base

Ideal for quick installation and suitable for lighter structures like small storage sheds. A wooden base also provides natural insulation from ground cold, a benefit during Ireland’s chilly winters.

Materials needed:

• Pressure-treated timber (100mm x 100mm for frame)
• Deck boards or exterior plywood
• Damp-proof membrane
• Concrete blocks or pavers
• Galvanized screws/nails
• Spirit level

Step-by-step guide:

1. Prepare the ground: Clear and level the area, removing vegetation. Unlike concrete bases, you don’t need to dig as deeply, but the ground should be firm and level.
2. Create a grid pattern: Lay concrete blocks or pavers at regular intervals (approximately 50cm apart) to support your timber frame. Ensure they’re level using a spirit level. These blocks keep the timber off the ground, preventing rot from soil contact.
3. Build the frame: Construct a rectangular frame using pressure-treated timber. The frame should match your shed dimensions. For Irish conditions, using Nordic spruce timber provides excellent durability against our damp climate.
4. Add cross supports: Install additional timber joists at 40-50cm intervals for stability. The spacing depends on your shed weight – heavier structures need closer joist spacing.
5. Add flooring: Attach deck boards or exterior plywood to create the floor surface. Ensure boards have small gaps (2-3mm) to allow for expansion in damp weather.

This method is cost-effective (€80-€150) and suitable for smaller structures or where ground conditions make concrete difficult. It’s particularly good for sloped sites where leveling for concrete would be challenging and expensive.

4. Ground screw or plastic grid systems

Modern alternatives that offer quick installation with minimal ground disruption – perfect for those wanting to minimize their environmental impact.

Ground screws:

• Metal screws driven into the ground
• Wooden beams attached on top
• Ideal for uneven terrain
• Professional installation often recommended

Plastic grid systems:

• Interlocking plastic grids laid on a membrane
• Quick to install with minimal excavation
• Requires flat, stable ground
• Good for smaller sheds

These systems are increasingly popular in Ireland as they combine ease of installation with minimal ground disturbance – an important consideration if you might want to reclaim the garden space in the future.

Special considerations for Irish conditions

Drainage

Ireland’s wet climate makes proper drainage essential:

• Ensure your base sits 4-5cm above ground level
• Create a slight slope (1-2 degrees) to direct water away from the shed
• Consider adding drainage channels around larger structures

In areas experiencing frequent heavy rainfall, like the west coast, consider installing additional drainage solutions such as French drains around your shed to prevent water pooling during prolonged wet periods.

Frost protection

To prevent frost heave in winter:

• Dig foundations below the frost line (typically 30-40cm in Ireland)
• Use adequate hardcore layers for drainage
• Consider additional insulation for garden sheds that will be used year-round

Frost heave can lift and crack concrete bases or twist wooden frames, so proper preparation is essential, especially in inland counties where winter temperatures regularly drop below freezing.

Planning permission considerations

In Ireland, most garden sheds under 25m² and 3m in height don’t require planning permission, but always check local regulations before starting. Maintain a 2m gap from property boundaries to avoid permission issues.

Different counties may have specific requirements, so it’s worth checking with your local council before proceeding with larger structures. Dublin City Council, for example, has specific guidelines about shed placement in relation to existing structures.

Cost comparison

Base Type	Materials Cost	Labour Cost (Professional)	Durability	Best For
Concrete Slab	€150-€300	€200-€500	High (10+ years)	Larger sheds, heavy equipment
Paving Slabs	€50-€150	€50-€150	Medium	Medium-sized sheds
Wooden Base	€80-€150	€100-€250	Medium (with treatment)	Small to medium sheds
Plastic Grid	€40-€120	€50-€100	Medium	Small sheds, quick installation

These costs can vary based on your location in Ireland and current material prices. Rural areas may incur additional delivery charges for materials like ready-mix concrete.

Tips for success

• Over-prepare: Make your base slightly larger than your shed (5-10cm on each side) to provide better protection against rain splash-back.
• Check levels frequently: A perfectly level base prevents structural issues later. In a typical 8×6 shed, even a 1cm difference in level can cause doors to jam.
• Plan for access: Ensure you can still reach your shed easily after installation. Consider creating a pathway with paving slabs or gravel to prevent mud tracking.
• Consider future use: If you might upgrade to a larger structure later, build a sturdier base now. Future-proofing saves money and effort in the long run.

An often-overlooked tip is to take photographs of your site before and during preparation – they’ll be invaluable if you need to troubleshoot drainage issues later or when planning future garden projects.

When to call a professional

While many shed bases are suitable for DIY, consider professional help if:

• Your site has significant slope or drainage issues
• You’re installing a larger than normal garden shed
• You’re unsure about local building regulations
• The project requires heavy machinery or specialized skills

Professional installers often guarantee their work, which provides peace of mind for larger investments. They also typically complete the job much faster than a DIY approach.

A properly constructed base is the foundation of a successful shed installation. By taking time to prepare the ground correctly, you’ll enjoy a stable, durable garden structure for many years to come. Remember that investing extra effort in drainage and moisture protection will pay dividends through the extended life of your garden building.
